AC Disconnect Replacement in Fultondale, AL

A homeowner in Fultondale, AL called Superior Service Electric after multiple attempts by other technicians failed to resolve an ongoing HVAC problem. The issue turned out to involve both the thermostat wiring and the AC disconnect, so we completed a focused electrical and safety repair to restore proper operation and code compliance.

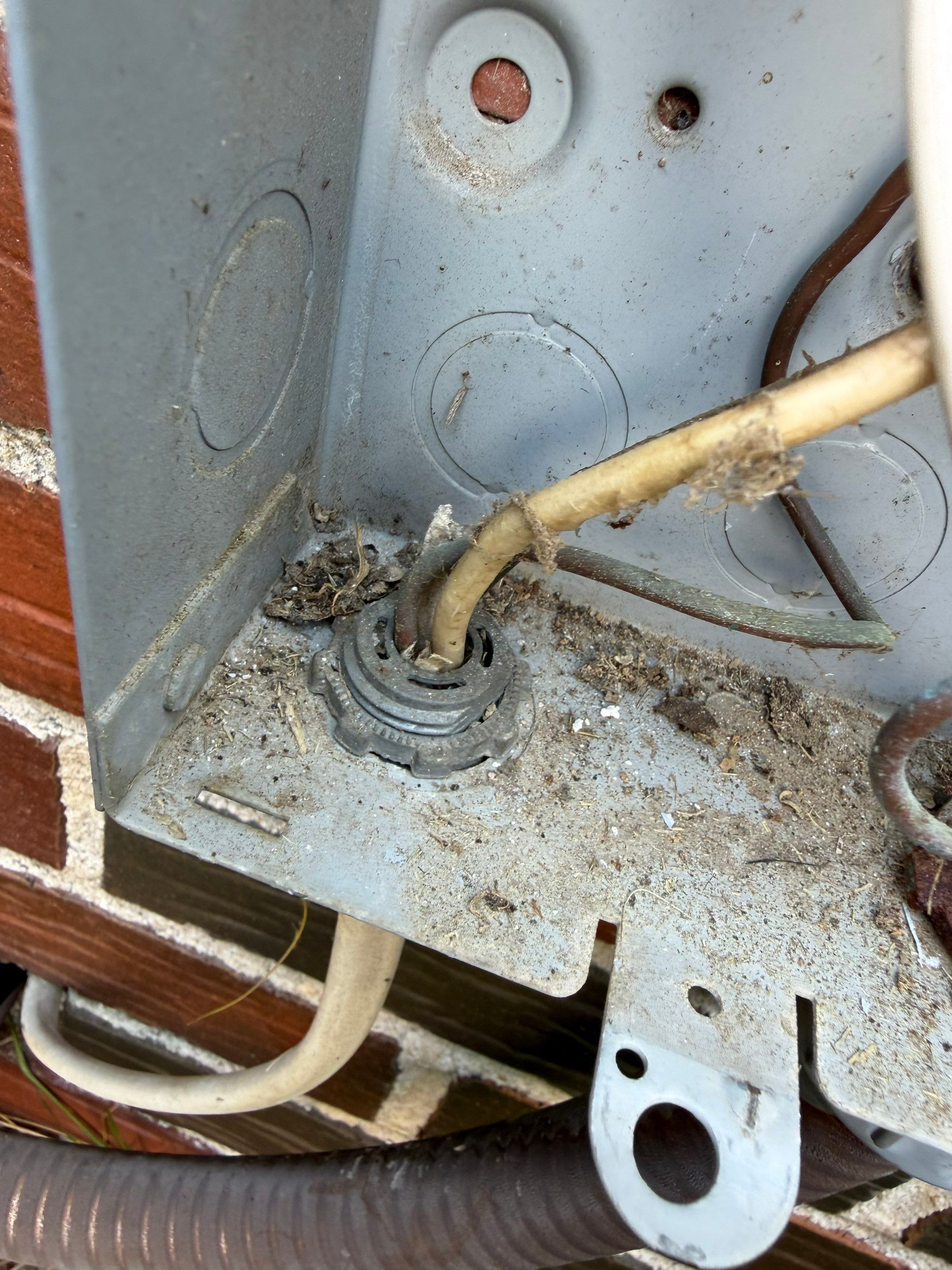

On arrival our team inspected the thermostat circuit and the outdoor disconnect assembly. We found the thermostat wiring itself was faulty, which was part of the reason the system was not operating reliably. The disconnect had several problems that raised safety concerns as well. From the breaker to the AC disconnect the supply wire was not protected from physical damage and the connector that had been used was the wrong type, which can lead to conductor damage over time.

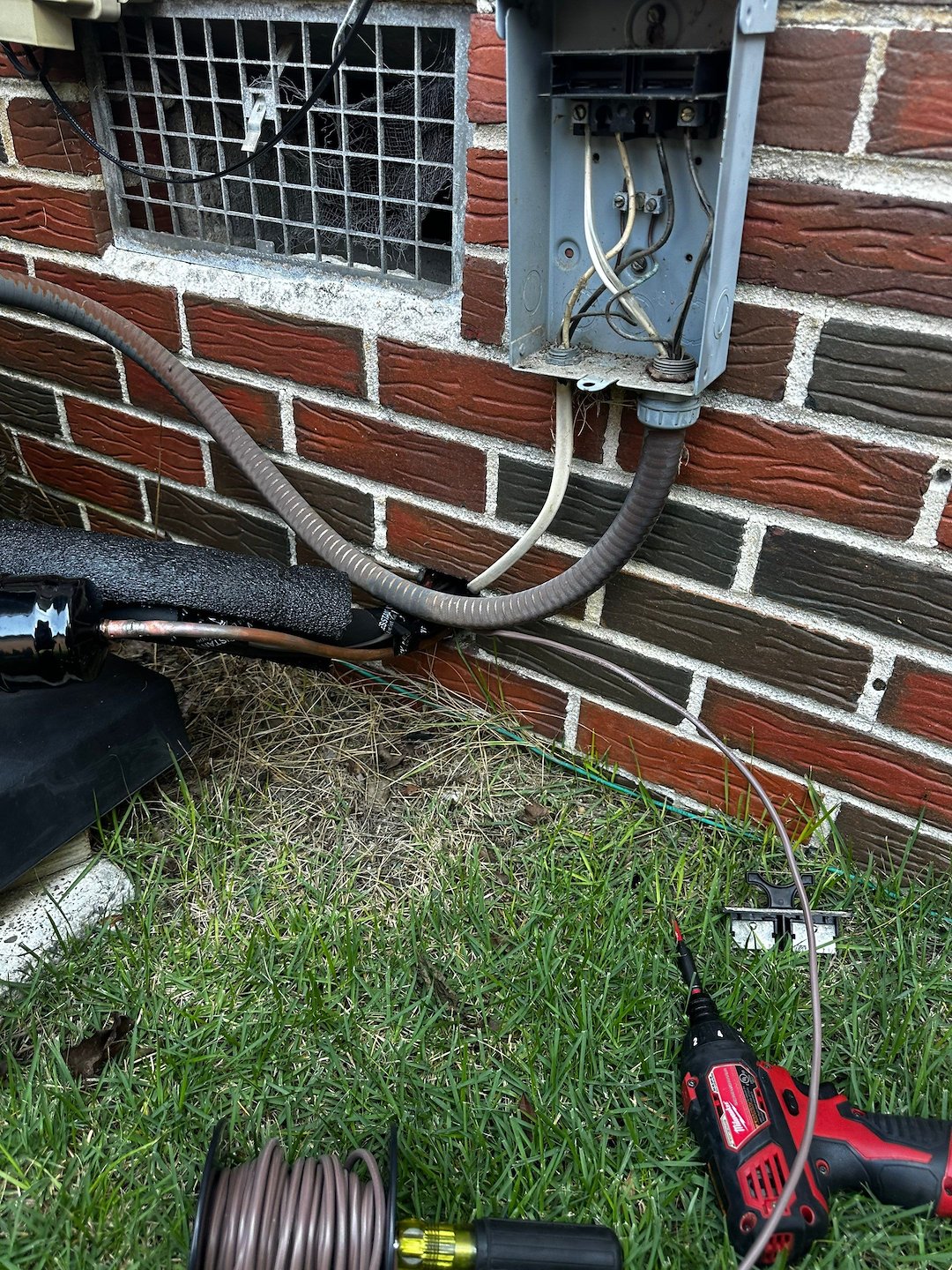

The wiring from the disconnect to the air conditioning unit was protected, but the conduit was weathered and cracking from exposure, and the conductors inside were indoor type wiring. That indoor wiring is not permitted for outdoor use under the safety code, so it needed to be replaced with properly rated materials to prevent hazards and meet code requirements.

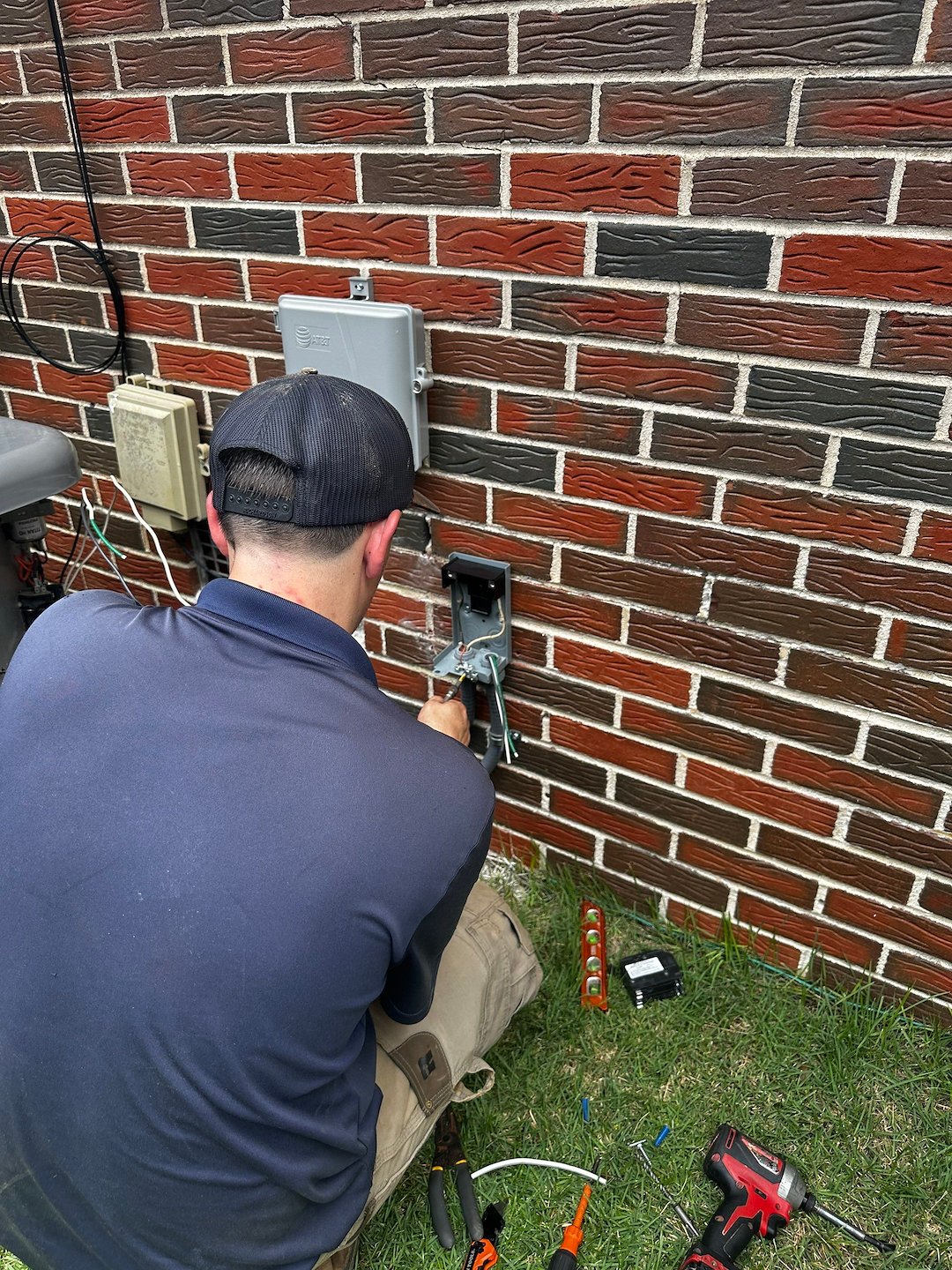

We made the necessary repairs to put everything right. The work included replacing the weathered conduit and installing an outdoor rated AC disconnect. We removed the indoor rated conductors and installed outdoor rated wiring between the disconnect and the AC unit. We also replaced the thermostat wiring so the control signals would be reliable. Each component was installed to meet safety code and to provide proper protection from physical damage and the elements.

All replacements were secured and connected using correct, approved connectors and methods. By converting to outdoor rated wiring and a new disconnect assembly, the installation now protects conductors from exposure and damage, and it complies with applicable safety standards. Replacing the thermostat wiring addressed the control fault so the system can respond properly to thermostat commands.

Superior Service Electric takes electrical and safety issues seriously, especially when previous attempts at repair have not resolved the problem. For this Fultondale, AL service call we focused on a clear diagnosis, code-compliant repairs, and durable components to reduce the chance of repeat failures. If you are having intermittent HVAC issues or suspect wiring or disconnect problems, a proper inspection can identify safety risks and correct them before they cause further damage.

Location: Fultondale, AL
